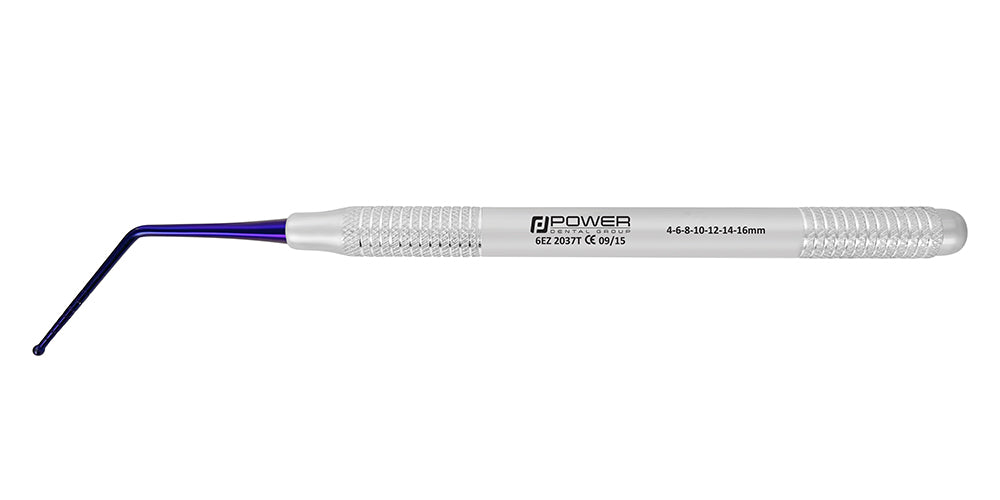

The Bone Depth Gauge – Angled, Ball Tip (4–16 mm), Titanium is built for quick, repeatable measurements in extraction sockets and osteotomies. A 2.1 mm ball tip provides tactile, atraumatic contact at the base of the site, while high-contrast rings at 4, 6, 8, 10, 12, 14, and 16 mm give instant depth reference during implant and oral surgery. The titanium-coated working shank reduces friction and glare and improves wear and corrosion resistance. An ~130° angled shank with a 30 mm working reach enhances access and visibility in posterior and confined regions. The large-diameter 6EZ knurled handle delivers a steady, low-fatigue grip. Manufactured from surgical-grade, passivated stainless steel with a satin, anti-glare finish, the instrument measures 17.3 cm overall and is fully autoclavable and reusable for efficient clinical workflows.

Key Features:

• 2.1 mm ball tip for atraumatic, tactile contact at the pocket/osteotomy base
• 4–16 mm graduations with 2 mm steps (4, 6, 8, 10, 12, 14, 16) for fast depth reading
• Titanium-coated working shank to enhance wear resistance and reduce friction/glare
• Angled shank (~130°) with 30 mm reach for improved access in posterior sites
• High-contrast etched markings designed to remain legible after sterilization
• 6EZ large-diameter knurled handle for secure, low-fatigue control
• Surgical-grade stainless steel, satin/anti-glare finish; fully autoclavable & reusable
