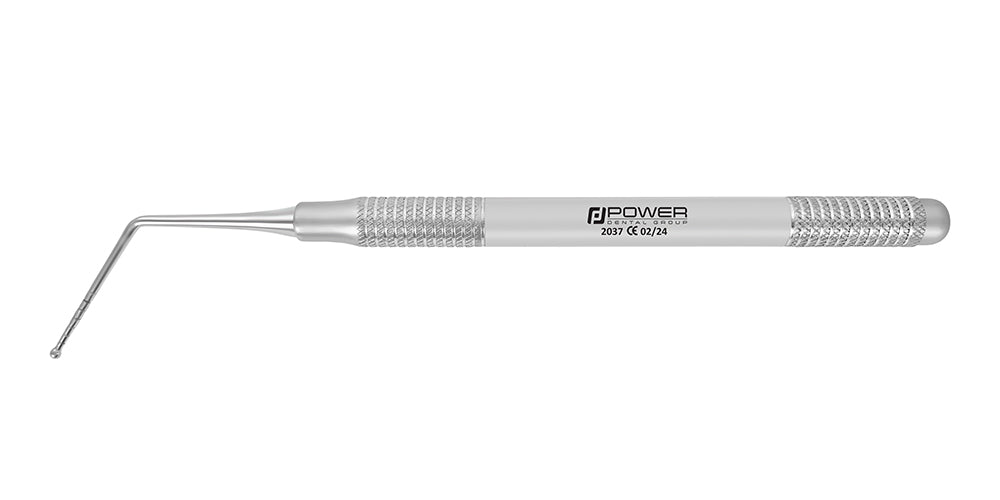

The Bone Depth Gauge – Angled, Ball Tip (4–16 mm) is designed for quick, repeatable depth measurements in sockets and osteotomies. A 2.1 mm ball tip provides tactile, atraumatic contact at the base of the site, while high-contrast etched rings at 4, 6, 8, 10, 12, 14, and 16 mm offer instant reference during implant and oral surgery. The angled working shank (~130°) with a 30 mm reach improves access and visibility in posterior and confined regions. A lightweight, knurled, non-slip handle ensures steady control. Manufactured from surgical-grade, passivated stainless steel with a satin, anti-glare finish, the instrument measures 17.3 cm overall and is fully autoclavable and reusable for efficient clinical workflows.

Key Features:

• 2.1 mm ball tip for atraumatic, tactile contact at the pocket or osteotomy base
• 4–16 mm graduations with 2 mm steps (4, 6, 8, 10, 12, 14, 16) for fast depth reading
• Angled shank (~130°) with 30 mm working reach for improved access in posterior sites
• High-contrast etched markings designed to remain legible after sterilization
• Knurled, lightweight handle for secure, low-fatigue grip
• Surgical-grade stainless steel, satin/anti-glare finish; passivated for corrosion resistance
• 17.3 cm overall length; fully autoclavable & reusable
