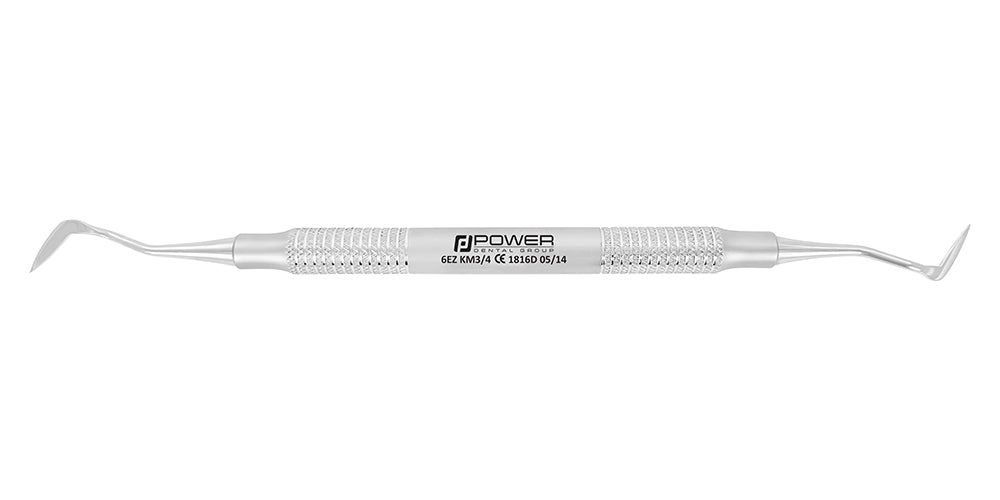

The KM 3/4 has flat, tapered working blades with a Merrifield-style outline, rather than a curved or oval gingivectomy cutting surface. Both blades have a mirrored shape and are mounted on sharply angled shanks.
Each blade is 11 mm long, with maximum widths of 2.7 mm and 3.1 mm. The flat faces and pointed profile define the working end; the PDG blade outline differs slightly from the reference Merrifield design.
The two opposite ends give another direction of approach without changing to a different blade shape. Compare the flat taper to the wider curved profiles of Kirkland or Solt when selecting an instrument for gingival soft-tissue cutting.
The defining difference is the flat blade face and tapered outline. Choose this geometry when that cutting profile is appropriate; curved gingivectomy blades follow a different type of tissue contour.
RELATED OPTIONS
Need a curved Kirkland cutting edge?
1801 – Kirkland 15/16 Gingivectomy Knife – Kirkland 15/16 has contoured blades for external-bevel incisions rather than the KM 3/4's flat tapered shape.
Prefer an oval Solt working end?
1811 – Solt 1/2 Gingivectomy Knife – Solt 1/2 uses a broader curved blade for long bevel gingivectomy and tissue contouring.
KEY FEATURES
- Flat, tapered blade faces – Working ends are flat rather than curved.
- Mirrored KM 3/4 configuration – Two matching cutting orientations on angled shanks.
- 11 mm blade length – Measured cutting-end length on both sides.
- 2.7 / 3.1 mm maximum widths – Opposing blades differ slightly in measured width.
- Diamond-knurled stainless steel handle – Crosshatched grip areas for handling with gloved fingers.
- 7.7 in (19.5 cm) overall length – Full instrument measurement.
- Steam autoclavable and reusable – Surgical-grade stainless steel construction for routine reprocessing.
- Instrument Type: Periodontal gingivectomy knife
- Pattern: KM 3/4; Merrifield-style
- Working Ends: Double-ended
- Blade / Shank Geometry: Flat, tapered gingivectomy blades with angled shanks
- Blade Length: 11 mm (each end)
- Maximum Blade Width: 2.7 mm / 3.1 mm (opposing ends)
- Overall Length: 7.7 in (19.5 cm)
- Handle: Diamond-knurled stainless steel
- Material: Surgical-grade stainless steel
- Sterilization / Reusability: Steam autoclavable and reusable
- Clinical Use: Gingival soft-tissue incisions and recontouring
